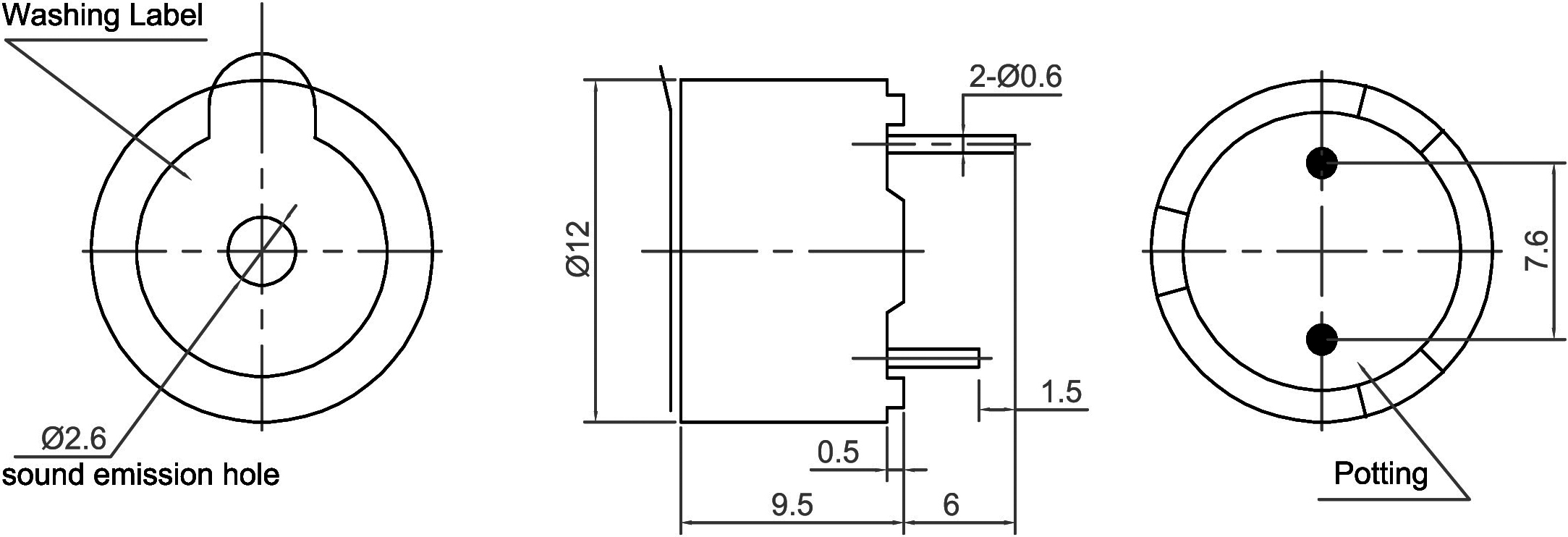

Magnetic Buzzer (DC)
| Part No. | Diameter Φ (mm) | Height (mm) | Operating Voltage (VDC) | Rated Voltage (VDC) | Max Rated Current (mA) | Min Sound Output (dBA) | Tone Nature | Resonant Frequency (Hz) | Operating Tempature (°C) | Terminal | Housing | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CMB1209HC23NP | 12 | 9.5 | 8 ~ 15 | 12 | 30 | 85 @ 10cm | Continuous | 2300 ± 300 | -40 ~ +85 | Pin | Noryl | 2 |
Please contact us for the datasheet of this product.
